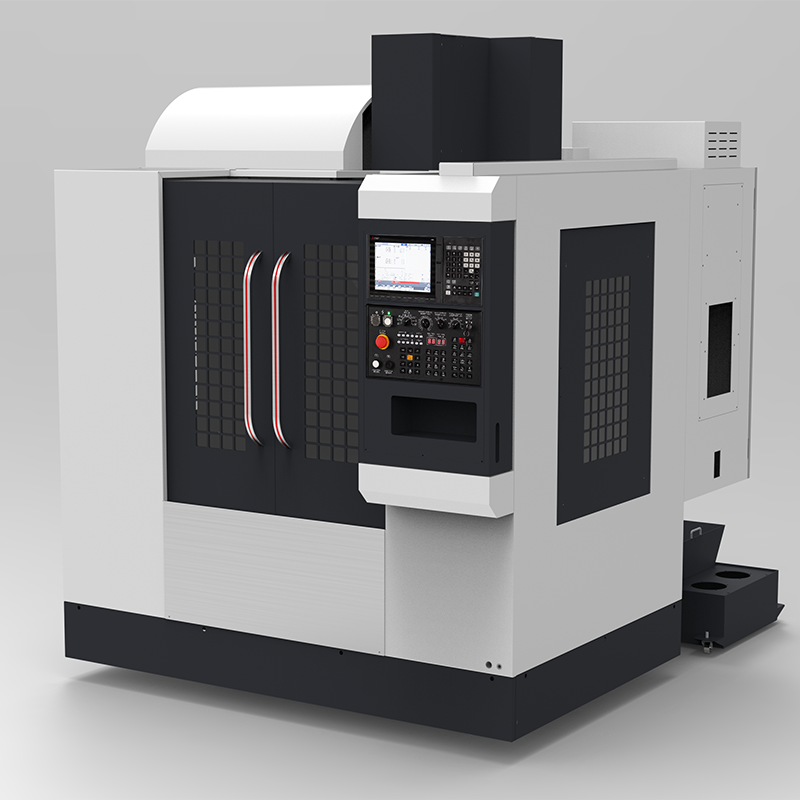

| Item | Unit | V7 |
| X/Y/Z Travel | mm | 700*450*450 |
| Worktable Size | mm | 800*420 |
| Worktable Load | kg | 250 |
| Distance from Spindle Center to Column Guide Rail Surface | mm | 488 |
| Distance from Spindle Center to Table Surface | mm | 135-585 |
| T-slot on the Worktable | mm | 14T*3*125 |
| Spindle Taper/Bore Diameter | BT40(Φ120) | |
| Spindle Rotate Speed | r/min | 12000 |
| (X/Y/Z) Rapid Traverse | m/min | 48 |
| Ball Screw | mm | XZ：32*16/12 single nut ； Y：28*16/12 single nut |
| Linear Guide(Rail Width/Number of Blocks) | mm | XY:30*2 Z:35*2 |
| Machine Weight | kg | about 2750 |
1. Three axes use Taiwanese-made 'Yintai PMI or Shangyin HIWIN' or Japanese 'THK' C3 grade ball screws
2. Three axes use Taiwanese-made 'Yintai PMI or Shangyin HIWIN' or Japanese 'THK' roller linear guides or German 'Rexroth' ball linear guides (Z-axis roller)
3. Three axes use P4 grade bearings
4. Three axes 'Speedcn' couplings
5. Three axes 'Speedcn' protective covers
6. BT40 'Speedcn' spindle
7. Boosting cylinder
8. Volumetric oil injector
9. Toolbox and adjustment tools
1. BT40 - Φ120 – 15000rpm direct drive 'Speedcn' long-nose spindle
2. BT40-24T 'Yitai Speedcn' tool magazine
3. Direct drive spindle upgraded with centralized water outlet
