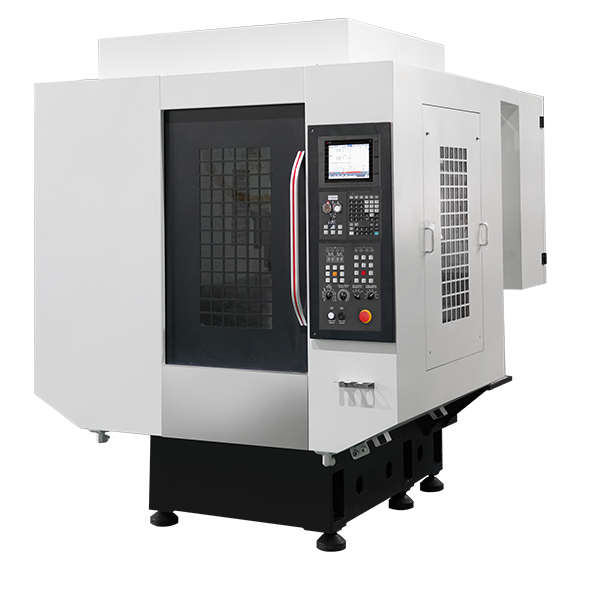

| Item | Unit | TP500Z |
| X/Y/Z Travel | mm | 500*400*330 |
| Worktable Size | mm | 650*400 |
| Worktable Load | kg | 250 |
| Distance from Spindle Center to Column Guide Rail Surface | mm | 464 |
| Distance from Spindle Face to Table Surface | mm | 150-480 |
| T-slot on the Worktable | mm | 14T*3*125 |
| Spindle Taper/Bore Diameter | BT30-(Φ100) | |
| Spindle Rotate Speed | r/min | 20000 |
| (X/Y/Z) Rapid Traverse | m/min | 36/48 |
| Ball Screw | mm | XY：28*12/16 ； Z：32*12/16 |
| Linear Guide(Rail Width/Number of Blocks) | mm | XYZ:30*2 |
| Bare Machine Weight | kg | about 2200 |
1. Three axes use Japanese “THK” C3 grade ball screws
2. Three axes use Japanese “THK” linear guides
3. Three axes use P4 grade bearings
4. Three axes use Taiwanese-made "Speedcn" couplings
5. Three axes use Taiwanese-made "Speedcn" protective covers
6. BBT30 -Φ100- 20000rpm direct drive “Speedcn” spindle
7. BT30- 21T rotatory “Yitai Speedcn” servo tool magazine
8. Volumetric oil injector
9. Toolbox and adjustment tools
1. BBT30 Φ100 12000/15000rpm direct drive “Speedcn” spindle
2. BT30-26T “Yitai Speedcn” servo tool magazine
