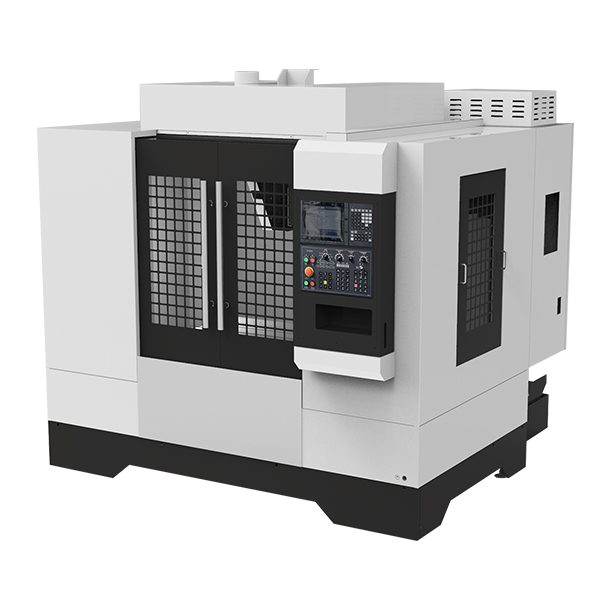

| Item | Unit | TP800V |
| X/Y/Z Travel | mm | 800*500*330 |
| Worktable Size | mm | 1000*500 |
| Worktable Load | kg | 350 |
| Distance from Spindle Center to Column Guide Rail Surface | mm | 546 |
| Distance from Spindle Face to Table Surface | mm | 160-490 |
| T-slot on the Worktable | mm | 18T*5*100 |
| Spindle Taper/Bore Diameter | BT30-(Φ110) | |
| Spindle Rotate Speed | r/min | 20000 |
| (X/Y/Z) Rapid Traverse | m/min | 48 |
| Ball Screw | mm | XYZ：32*16 |
| Linear Guide(Rail Width/Number of Blocks) | mm | XYZ：35*2 |
| Bare Machine Weight | kg | about 3000 |
1. Three axes use Japanese “THK” C3 grade ball screws
2. Three axes use Japanese “THK” linear guides
3. Three axes use P4 grade bearings
4. Three axes use Taiwanese-made "Speedcn" couplings
5. Three axes use Taiwanese-made "Speedcn" protective covers
6. BBT30 -Φ110- 20000rpm direct drive “Speedcn” spindle
7. BT30- 21T rotatory “Yitai Speedcn” servo tool magazine
8. Volumetric oil injector
9. Toolbox and adjustment tools
1. BBT30 Φ110 12000/15000rpm direct drive “Speedcn” spindle
2. BBT30 - Φ110 – 20000rpm direct drive “Speedcn” spindle
3. BT30-26T “Yitai Speedcn” servo tool magazine
